Pyrheliometer

A Pyrheliometer is a solar radiation sensor designed to measure the intensity of direct solar radiation. It works by using a collimated tube that allows only direct sunlight to pass through, excluding scattered or diffused light. The radiation received is then measured using a thermopile sensor, which converts the heat from sunlight into an electrical signal.

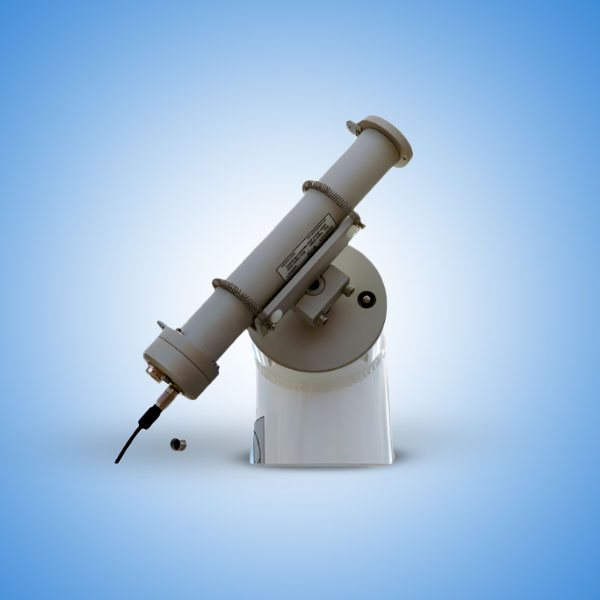

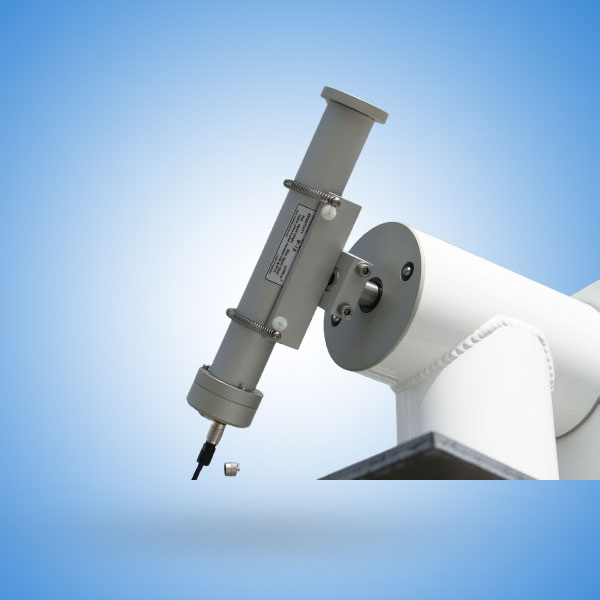

The Pyrheliometer is typically mounted on a solar tracker to follow the sun’s movement across the sky, ensuring it always measures direct beam irradiance accurately. This type of measurement is especially important for concentrating solar power (CSP) systems and solar resource assessment.

A Pyrheliometer consists of a precision-aligned tube that points directly at the sun. Inside, a thermopile sensor absorbs the sunlight and generates a voltage proportional to the amount of solar energy. Because it measures only direct solar irradiance (not diffuse), it must be aligned continuously with the sun using a solar tracker.

The standard unit of measurement is watts per square meter (W/m²), and readings are often averaged over time to analyze energy patterns. Pyrheliometers are built to meet international standards like ISO 9060 and WMO guidelines for radiation measurement.

Modern Pyrheliometers offer a range of features that make them highly reliable and accurate:

1. High Sensitivity and Accuracy – Suitable for professional solar energy and climate research.

2. Spectral Range – Typically between 200 nm and 4000 nm to cover full solar spectrum.

3. Weather-Resistant Build – Designed to withstand harsh outdoor environments.

4. Low Maintenance – Durable construction with minimal upkeep.

5. Compatibility with Solar Trackers – Ensures consistent alignment with the sun.

These features make the Pyrheliometer ideal for continuous outdoor deployment and data collection.

The Pyrheliometer is widely used in various scientific and industrial applications where direct solar radiation needs to be measured accurately:

1. Solar Resource Assessment – Helps determine the potential of a site for solar power generation.

2. Photovoltaic and Thermal System Testing – Evaluates solar panel and collector performance.

3. Meteorology and Climatology – Tracks solar trends, climate models, and weather predictions.

4. Calibration of Other Solar Sensors – Acts as a reference instrument for pyranometers.

5. Academic and Research Studies – Used in universities and research labs to study solar radiation.

Each of these applications benefits from the precise and dependable data provided by a Pyrheliometer.

A Pyrheliometer offers multiple advantages for professionals involved in solar energy, climate science, and environmental monitoring:

1. Improved Energy Forecasting – Supports better planning for solar energy production.

2. System Efficiency Evaluation – Detects losses in solar systems by comparing actual and expected radiation.

3. Standardized Data Collection – Meets global measurement standards for quality and consistency.

4. Supports Renewable Energy Projects – Provides critical inputs for feasibility studies and system design.

5. Long-Term Monitoring – Ideal for year-round, unattended operation.

These benefits make the Pyrheliometer an essential tool in any serious solar monitoring setup.

When selecting a Pyrheliometer, consider the following criteria:

1. Measurement Range and Accuracy – Make sure it meets your application’s precision needs.

2. Compliance with Standards – Look for models compliant with ISO and WMO guidelines.

3. Mounting and Tracking Requirements – Ensure compatibility with your solar tracker.

4. Environmental Durability – Suitable for the specific climate and site conditions.

5. Data Output and Integration – Choose a sensor that connects easily with your data logger or SCADA system.

The right Pyrheliometer will offer dependable performance, minimal maintenance, and long service life.

While Pyrheliometers are low-maintenance devices, periodic care ensures optimal performance:

1. Regular Cleaning – The entrance window must be kept clear of dust and debris.

2. Accurate Alignment – The sensor must always point directly at the sun.

3. Calibration – Should be recalibrated annually or as recommended by the manufacturer.

Routine maintenance ensures that the Pyrheliometer continues to provide high-quality solar data over time.
